Three-Lamp UV Dryer

1320#
This machine is professionally designed for the rapid and thorough curing of transparent and solid-color UV paints.

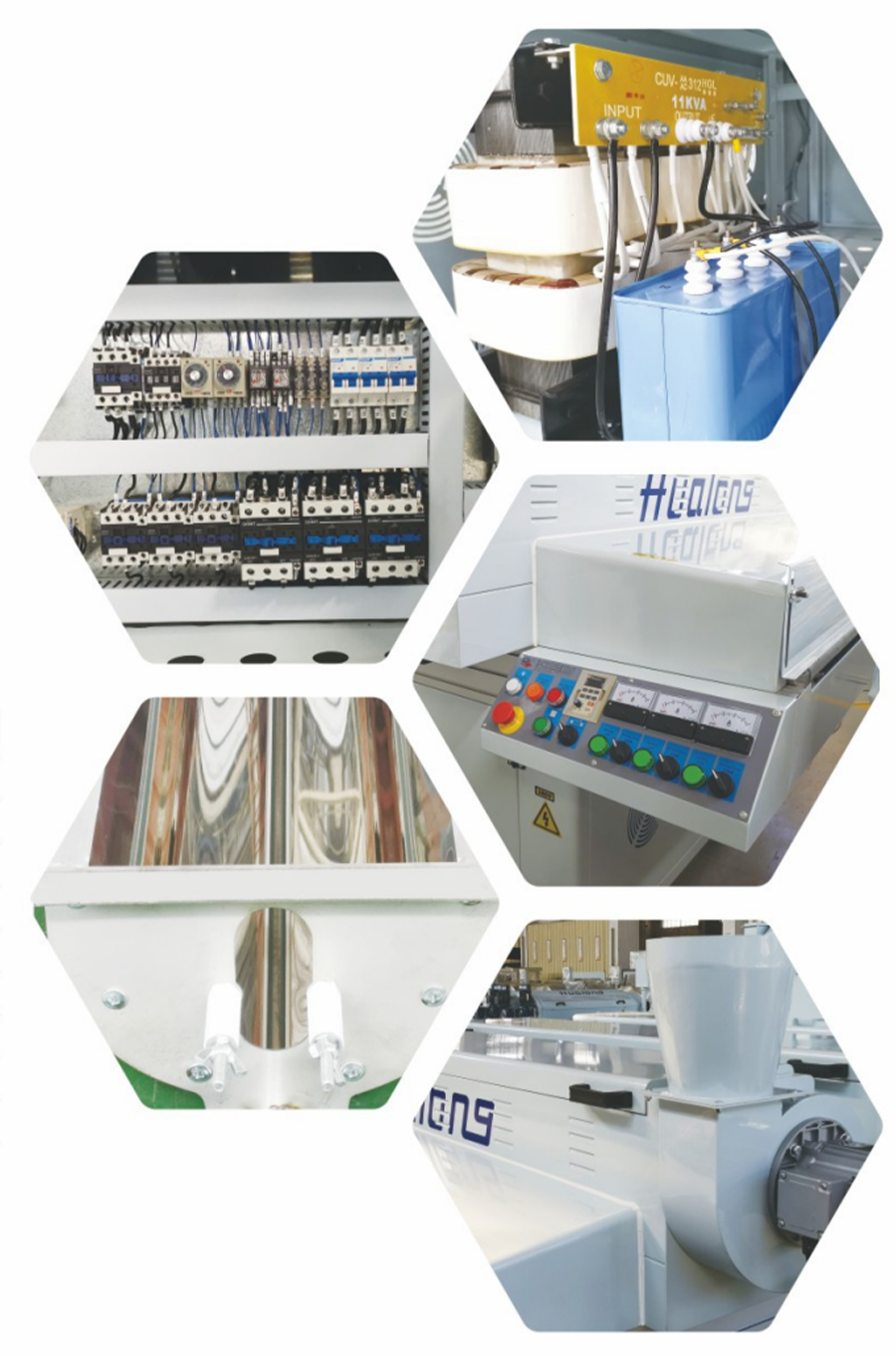

UV lamps with German reflectors, achieving a reflectivity of up to 90%, Equipped with a superior cooling system that effectively extends lamp life, lamp life exceeds 1000 hours Excellent heat dissipation in the UV lamps prevents rapid aging at both ends, Imported over-temperature protection control and a Taiwanese exhaust fan for forced cooling, All transmission parts are heat-treated, ensuring a durability of over twenty years.
Effective working width 0-1300mm Effective working thickness 3-80mm Minimum working length 300mm Conveyor speed 5-20m/min Power 35kw Mechanical dimensions 2350×2300×1400mm Body part description Independent light box, independent control Source description BY Mercury Lamp Frequency Converter 11KW × 3 Units Table height 850MM

Effective working width	0-1300mm
Effective working thickness	3-80mm
Minimum working length	300mm
Conveyor speed	5-20m/min
Power	35kw
Mechanical dimensions	2350×2300×1400mm
Body part description	Independent light box, independent control
Source description	BY Mercury Lamp Frequency Converter 11KW × 3 Units
Table height	850MM
